PCAN-ExpressCard:ExpressCard转CAN接口卡

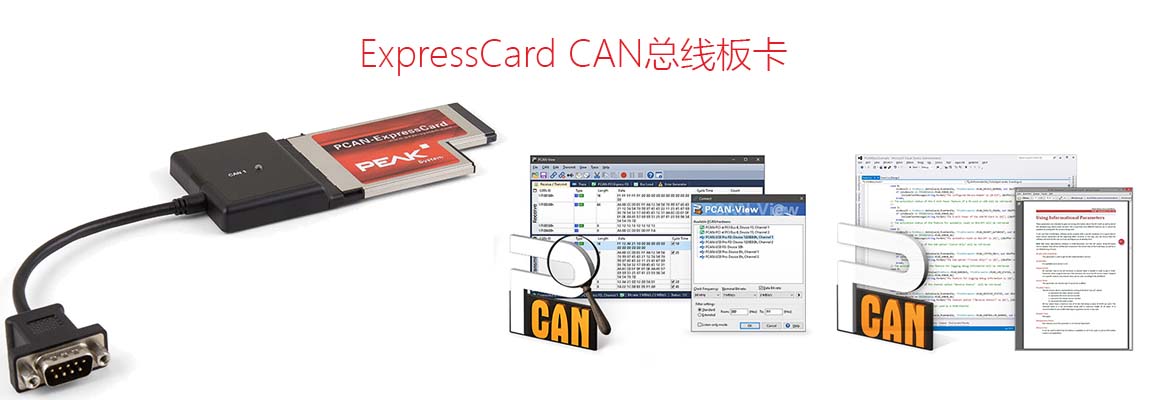

PCAN-ExpressCard CAN卡可把CAN总线连接到带有ExpressCard插槽的笔记本电脑或者台式机上。

该CAN卡有单通道和双通道两种版本。也有电气隔离版本,可以保证电脑和CAN之间的隔离电压达到300伏特。

整套也包含CAN总线监视软件PCAN-View for Windows和用于开发CAN总线连接应用程序的编程接口PCAN-Basic软件。

提醒:PCAN-ExpressCard双通道(IPEH-003001)和PCAN-ExpressCard双通道电气隔离型 (IPEH-003003) 不再生产!

规格

  • 适用于ExpressCard插槽的CAN卡
  • 形状系数ExpressCard/54
  • 高速CAN通道 (ISO 11898-2)
  • 比特率从5 kbit/s最大至1 Mbit/s
  • 符合CAN规范2.0A (11-bit ID) 和 2.0B (29-bit ID)
  • 通过D-Sub,9-引脚连接器(依照CiA 303-1)连接到CAN总线
  • NXP SJA1000 CAN 控制器, 16 MHz 时钟频率
  • NXP PCA82C251 CAN收发器
  • 可通过软件选择5V供电给CAN接头,比如用于外部总线转换器
  • CAN连接上的电气隔离高达300V,分开每路CAN通道(只是IPEH-003002型)
  • 工作温度范围0 to 70 °C (32 to 158 °F)


D-Sub引脚分布图

引脚 引脚分配
1 无连接 / 可选 +5V
2 CAN-L
3 GND
4 无连接
5 无连接
6 GND
7 CAN-H
8 无连接
9 无连接

发货清单:



订货信息

说明 货号
PCAN-ExpressCard单通道 IPEH-003000
PCAN-ExpressCard单通道电气隔离 IPEH-003002

更多信息

下载

Device driver setup for Windows
PEAK-System installation package for device drivers and tools for Windows® 10, 8.1, 7 (32/64-bit) for our PC interfaces.
Download
Device driver for Linux
Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.
Website
PCAN-ExpressCard manual
English
PCAN-View
Windows® software for displaying, transmitting, and recording CAN and CAN FD messages
Download
PCAN-Basic API
API for the development of applications with CAN and CAN FD connections for Windows® 10, 8.1, 7 (32/64-Bit)
Download
PCAN-Basic API (Linux)
API for the development of applications with CAN connection for Linux
Download
PCAN-CCP API
API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)
Download
PCAN-XCP API
API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)
Download
PCAN-ISO-TP API
API for the transfer of data packages according to ISO-TP (ISO 15765-2)
Download
PCAN-UDS API
API to communicate with control devices according to UDS (ISO 14229-1)
Download
PCAN-OBD-2 API
API for the vehicle diagnostics according to OBD-2 (ISO 15765-4)
Download
PCAN-PassThru API
Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows® 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English).
Download
Windows 2000 package
Device drivers for Windows® 2000 and the CAN monitor PCAN-View.
Download
BaudTool
Windows® software for calculating the BTR0/BTR1 baud rate register
Download
