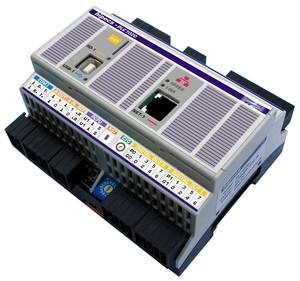

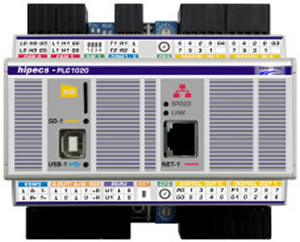

hipecs PLC1000 CoDeSys PLC

系统

• Infineon XE169 16-Bit CPU
• 2000 operations / ms
• internal file system
• 3 MByte program memory
• 1 Mbyte data memory
• SD-Card up to 4 GByte
• 4 kByte Retain-Speicher
• RTC
• operating voltage 24 Volt
• WAGO type 713 - connectors
• temperature range 0..55°C
• plastic housing for DIN-rail mounting 108x125x60mm (incl connector)

数字输入

• 16 inputs 24 Volt (12V on request)
• reverse polarity protected
• input frequency range 0 .. 100 kHz
• status-LEDs for status indication
• special function: 6 interrupts, 3 encoder channels, 1 event counter

数字输出

• 16 outputs (24 Volt)
• output current @ 25°C: 8x0,5 A / 8x0,1 A permanently
• peak output current: 8x1,5 A / 8x0,35 A (<1,5 sec)
• voltage switching and short circuit protected
• status-LEDs for status indication
• special functions: stepper motor and PWM

模拟输入

• 2 analog voltage inputs 0..10,5 Volt
• 10 bit resolution
• reverse polarity protected

模拟输出

• 2 analog voltage outputs 0..10 Volt
• 10 bit resolution
• max. 5 mA output current
• short circuit protected
• 1 reference voltage output 10 Volt

CANopen

• 2 CAN busses accrding to ISO11898
• galvanic separation
• baudrate up to 1 MBit
• nodenumber 0..127
• CANopen Draft Standard DS301 V4, DSP302 V3.0, DS401 V2.1 und DSP405 V2.0
• 250 transmit/receive PDO (master mode)
  16 transmit/receive PDO (slave mode)
• dynamic PDO mapping
• variable PDO identifier
• emergency
• nodeguarding / life guarding / heartbeat / sync
• client SDO transfer

接口

• 1x USB programing and debug interface
• 1x USB channel for direct access to the file system shell via PC
• 2x RS232, 1x RS422/485
• 1x Ethernet: email client (SMTP), FTP server, webserver, TCP/UPD socket communication (CODESYS library)
