数字码型发生器-采样器
AT-LA500 can be configured to work as a powerful pattern generator-sampler. In this working mode AT-LA500 provides the capability to emulate standard serial or parallel bus transactions or custom digital interfaces for system or device debugging and characterization.
Its architecture is based on a vector/command memory and a powerful sequencer that defines the vector/command execution flow.
As pattern generator-sampler AT-LA500 provides:
- 125MHz generation rate, 250MHz acquisition rate
- 2Msample acquisition memory
- 640 vector/commands and 512 sequencer instructions
- 36 Bits with 2 independent directions
- Parallel or 1, 2 or 4 wire serial operating mode
- Conditional or unconditional execution flow/rogrammable edge/level event detector
- Programmable clock generator
- Programmable sampling frequency
- Multi-device synchronization with AT-XSS
下载 AT-LA500数字码型宣传册（PDF）

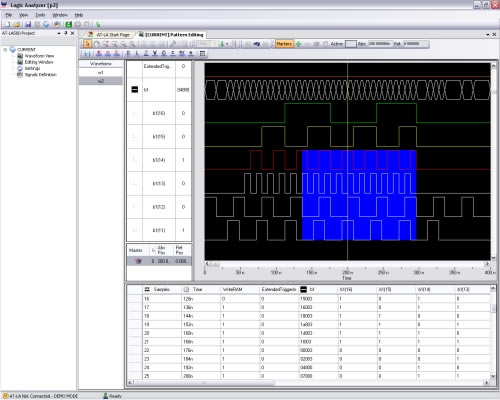

Digital waveforms (vectors and commands) can be edited in tabular format or by means of a powerful and very intuitive digital waveform editor that provides tools for advanced pattern definitions: clock, count and random patterns over a selection or the entire signal or bus.

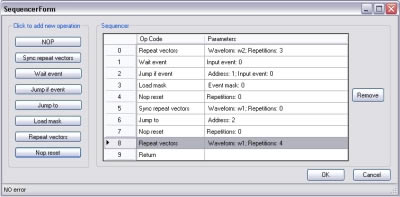

The execution flow of the edited waveforms can be easily defined with a dedicated sequencer editor form.
