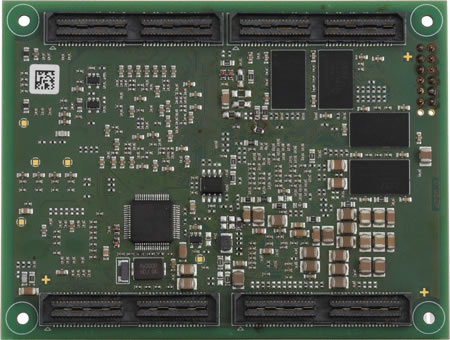

PLCcore-E660 OpenPCS

利用PLCcore-E660,一款高性能软PLC,基于可靠的 x86 架构,在嵌入式系统领域获得广泛应用。因为 Intel® Atom™处理器应用于该系统中,PLC 循环时间可达大约 100 µs。PLCcore-E660 特别适合作为 HMI 部件的核心模块,适用于CPU密集型应用和在系统中轻松使用电脑类PCIe模块。并行于PLC运行时间系统,附加的 Linux 应用可实施。因此,PLCcore-E660 – x86-家族中的一员 – 参与广泛的基于这款处理器架构的软件中。

使PLC能够成为即插即用核心模块,具有小尺寸,极大减少开发用户特定控制的工作量和成本。PLCcore-E660 也非常适用于智能网络节点,实现分散处理过程信号(CANopen 和 UDP)。

模块特点

PLCcore Firmware: IEC61131-3
PLCcore-E660: OpenPCS, Linux, QT optional, CANopen, TCP/IP, program download and debugging via Ethernet
PLCcore-E660 HMI: OpenPCS, Linux, SpiderControl, CANopen, TCP/IP, Program download and debugging via Ethernet
Controller: Intel® Atom™ Processor E660T
System Clock: 1,3GHz
RAM: 1GiB DDR2 (2GiB optional)
FLASH: 2GB NAND eMMC
On-board Peripherals: DMA, MMU, hardware watchdog, temperature sensor, RTC
Fast Ethernet: 2x 10/100/1000Mbps, on-board PHY
CAN: 1
UART: 4
USB: 6x USB 2.0 host, 12Mbps full-speed
1x USB 2.0 device, 12Mbps full-speed
SPI/I2C: 1/1
Mass storage: eMMC Flash on-board, MMC/SD-card signals on board-to-board connector
Others: SATA, PCIe
Operating Conditions: Temperature: -40°C…+85°C
Humidity: 10-90% RH, non-condensing
Power Supply: 5V +/- 5%, 2A max.
Dimensions/Weight: 105 x 80 x 11 (L x W x H in mm), 50g
Board-to-board connector: 4x 80 pin header socket, 0,8mm pitch
Available on board-to-board connector: CAN, USB device, 6 USB host, I²C, SPI, HD-Audio, SD-card, 9 DIO, 2x Ethernet, 2x SATA, 2x PCIe, LVDS and serial DVO display support
RoHS compliant: yes
Operating System: Linux with X server and QT framework
Integrated Development Environment (IDE): Pre-integrated Eclipse-based IDE with GNU C/C++ tool chain, source- and assembly-level debugger, IEC 61131-3 IDE (OpenPCS) with SYS TEC vendor extensions



说明

The PLCcore-E660 is a highly performant Soft-PLC, programmable in IEC 61131-3, with an integrated CANopen-Manger. Due to the powerful Intel® Atom™ processor E660T with 1.3 GHz CPU clock, PLC cycle times around 100 µs can be reached. The Real Time Linux, applied as operating system, makes it possible to perform additional arbitrary Linux applications parallel to the PLC Runtime System. Due to the Intel® Atom™ processor's membership in the x86-family, a wide range of available applications can be resorted to. As well, the x86-architecture pertains to the processor families, which are best-provided with drivers by the Linux kernel. Thus, commonly used PCIe or USB WLAN modules can be applied for the PLCcore-E660 in a trouble-free manner because of the available drivers. The Linux BSP, included in the delivery in the form of source code, allows for usage of user-specific peripheral components.

The parallel execution of the PLC Runtime System and additional Linux applications is supported by the Hyper-Threading of the Intel® Atom™ processor. For data exchange between a Linux application and the PLC Runtime system, inter-process mechanisms such as FIFOs or mutex-protected Shared Memory are available. Furthermore, the PLC has full access to the file system. On demand, data can be written to or read from any mounted media.

The module's SATA interface allows for integration of large mass storage devices to perform a long time logging of process data. The integrated 2GB Solid State Drive has an "ext3" file system with active journaling. That's why the file system keeps in a consistent state even in case of an unexpected power supply crash. The entire root file system of the PLCcore-E660 can be mounted as read/write. This simplifies significantly the in-the-field support and service, such as update transfer, additional installation of new software or adjustment of configuration files.

The integrated target visualization, based on the SpiderControl Microbrowser, supports LVDS as well as SDVO (Serial Digital Video Output) as interface for display usage. A standard USB keyboard can be used as input device. The adjustment of the keyboard layout can be made by using function blocks of the PLC.

The optional web visualization supports monitoring, servicing and diagnostic system analysis from remote PCs, even from far.

订货信息

货号 说明
3390089 PLCcore-E660
incl. OpenPCS, Linux, program download via Ethernet
3390090 PLCcore-E660 - HMI
incl. OpenPCS, Linux, SpiderControl Target Visualization, program download via Ethernet
3393000 License Spidercontrol Web Visualization

下载

OpenPCS IEC 61131-3 programming system
Version V6.7.4 RV1.00 - english
70 MB
SYS TEC - specific Extensions for OpenPCS / IEC 61131-3
Version 6.7.4 RV1.00 - english
27 MB
